Airport security starts and ends on the ground.
ZT-6000 with up to 6,000 l/min
Bumper turret
This cabin has been designed, developed and constructed in consideration of ergonomics and requirements for airport rescue and firefighting vehicles. Excellent panoramic view, the highest standards for passenger safety, confirmed by crash tests in accordance with ECE R29-3 and the user-guided operating concept Z-Control of the newest generation characterize this cabin.
Supported by ergonomic studies and simulations, the new cockpit provides perfect accessibility, visibility and position of all controls. The control elements are arranged according to their purpose and function: driving mode, extinguishing mode, secondary functions.
Occupant protection is our main focus. Accordingly, the Z-Cab AiR was developed and built according to the latest insights and state-of-the-art methods. At no time during the ECE R29-3 crash test occupants were at risk through deformation – survival space is guaranteed at all time. This test also confirmed the calculated rigidity of the cabin in the physical test and exceeded the requirements of ECE regulations.
Supported by ergonomic studies and simulations, the new cockpit provides perfect accessibility, visibility and position of all controls. The control elements are arranged according to their purpose and function: driving mode, extinguishing mode, secondary functions.
Mirror replacement system

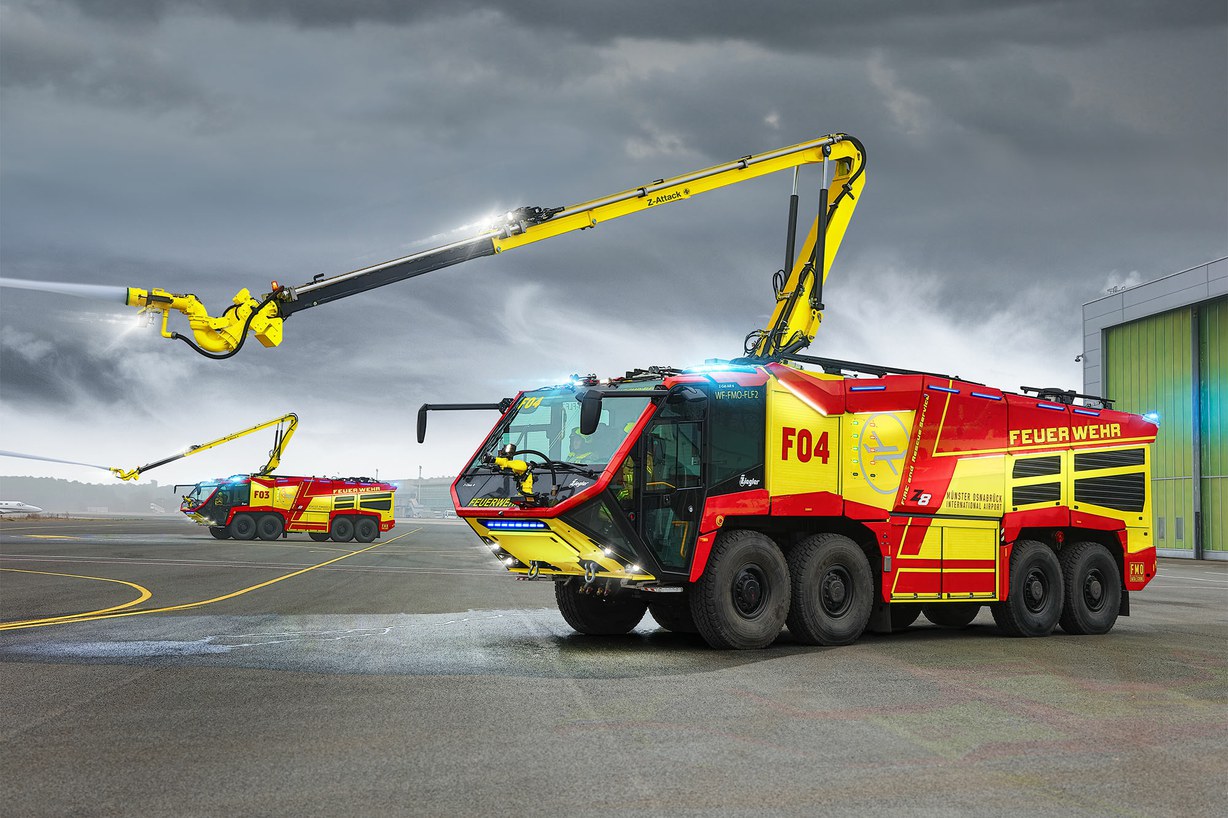

The Z8 impresses with its enormous size and a large extinguishing volume, which ensures a successful firefighting attack in case of an emergency. The remarkable acceleration and excellent handling make sure that the vehicle is also quickly on the spot in rough terrain.
The conception of ZIEGLER airport firefighting and rescue vehicles is one of the most successful in the world. In many international airports, the Z-Class vehicles have proven themselves for years: with extremely powerful, user-friendly technology and uncompromising reliability. Our offer for airports is supplemented by standard vehicles for property protection and the security of the airport infrastructure.
Up to 1,540 HP ( 2 x 770 HP)
Fully automatic and stepless
4,500 mm
L×W×H: 12,500 × 3,000 × 3,800 mm
52,000 kg
Axle load 13,000 kg
ZIEGLER pump FPN 10-10,000 (high pressure optional), PTO-driven or separate pump engine
ZIEGLER EAD
Up to 15,000 litres
Up to 1,800 litres
500 kg dry powder system
270 kg CO2 system
ICAO, EASA, NFPA, ADV, EC, CCCF
ZIEGLER FPN 10-10000, PTO-driven
Scania DC 16 Twin-Engine
Available in all exhaust gas levels
0 - 80 km/h in < 20 sec
Vmax 140 km/h
Bumper turret
This cabin has been designed, developed and constructed in consideration of ergonomics and requirements for airport rescue and firefighting vehicles. Excellent panoramic view, the highest standards for passenger safety, confirmed by crash tests in accordance with ECE R29-3 and the user-guided operating concept Z-Control of the newest generation characterize this cabin.
Supported by ergonomic studies and simulations, the new cockpit provides perfect accessibility, visibility and position of all controls. The control elements are arranged according to their purpose and function: driving mode, extinguishing mode, secondary functions.
Occupant protection is our main focus. Accordingly, the Z-Cab AiR was developed and built according to the latest insights and state-of-the-art methods. At no time during the ECE R29-3 crash test occupants were at risk through deformation – survival space is guaranteed at all time. This test also confirmed the calculated rigidity of the cabin in the physical test and exceeded the requirements of ECE regulations.
Supported by ergonomic studies and simulations, the new cockpit provides perfect accessibility, visibility and position of all controls. The control elements are arranged according to their purpose and function: driving mode, extinguishing mode, secondary functions.
Mirror replacement system
The Z8 impresses with its enormous size and a large extinguishing volume, which ensures a successful fire fighting attack in case of an emergency. The remarkable acceleration and excellent handling make sure that the vehicle is also quickly on the spot in rough terrain.
The conception of ZIEGLER airport firefighting and rescue vehicles is one of the most successful in the world. In many international airports, the Z-Class vehicles have proven themselves for years: with extremely powerful, user-friendly technology and uncompromising reliability. Our offer for airports is supplemented by standard vehicles for property protection and the security of the airport infrastructure.
Up to 1,540 HP ( 2 x 770 HP)
Fully automatic and stepless
4,500 mm
L×W×H: 12,500 × 3,000 × 3,800 mm
52,000 kg
Axle load 13,000 kg
ZIEGLER pump FPN 10-10,000 (high pressure optional), PTO-driven or separate pump engine
ZIEGLER EAD
Up to 15,000 litres
Up to 1,800 litres
500 kg dry powder system
270 kg CO2 system
ICAO, EASA, NFPA, ADV, EC, CCCF
ZIEGLER FPN 10-10000, PTO-driven
Scania DC 16 Twin-Engine
Available in all exhaust gas levels
0 - 80 km/h in < 20 sec
Vmax 140 km/h
With the Z-Class, we are able to offer the perfect airport rescue and firefighting vehicle for the different requirements at the airport. A modular concept allows the configuration of 4×4 up to 8×8 vehicles in accordance with ICAO on a uniform platform.
Z-Class vehicles fulfill a wide range of tactical requirements in terms of vehicle size, extinguishing agent quantity and special attachments and installations.
For more than five decades, the ZIEGLER brand stands for safety at airports all over the world. Airport rescue and firefighting vehicles are considered as the top tier amongst firefighting vehicles for good reasons. Designing and producing such vehicles takes special skills and extraordinary engineering know-how. ZIEGLER offers both.
Since 1969, we have been producing practical, high-performance solutions based on constant innovation. Today, we offer an impressive product portfolio of 4×4, 6×6 and 8×8 airport rescue and firefighting vehicles – designed and produced from a single source. By continuously developing proven, successful concepts, we ensure that our Z-Class vehicles exceed the requirements of relevant NFPA or ICAO standards by far.
Our main focus is always on the practicability of all of our technical systems and components, which need to work reliable and unrestricted in case of an emergency. This is our definition of holistic security.
"We provide security" - the brand promise clearly shows what the brand ZIEGLER stands for - in every sense of the word. Especially the direct contact is important to us. ZIEGELER customers trust anywhere in the world. For 125 years. Today. And in the future.
Through our representatives, we are sure that you have a direct and competent contact partner every time.
For further questions or requests, please use the following contact form. Your address and your fire department/agency/company help us to respond to your request quickly. Of course, we will treat your data confidentially.
