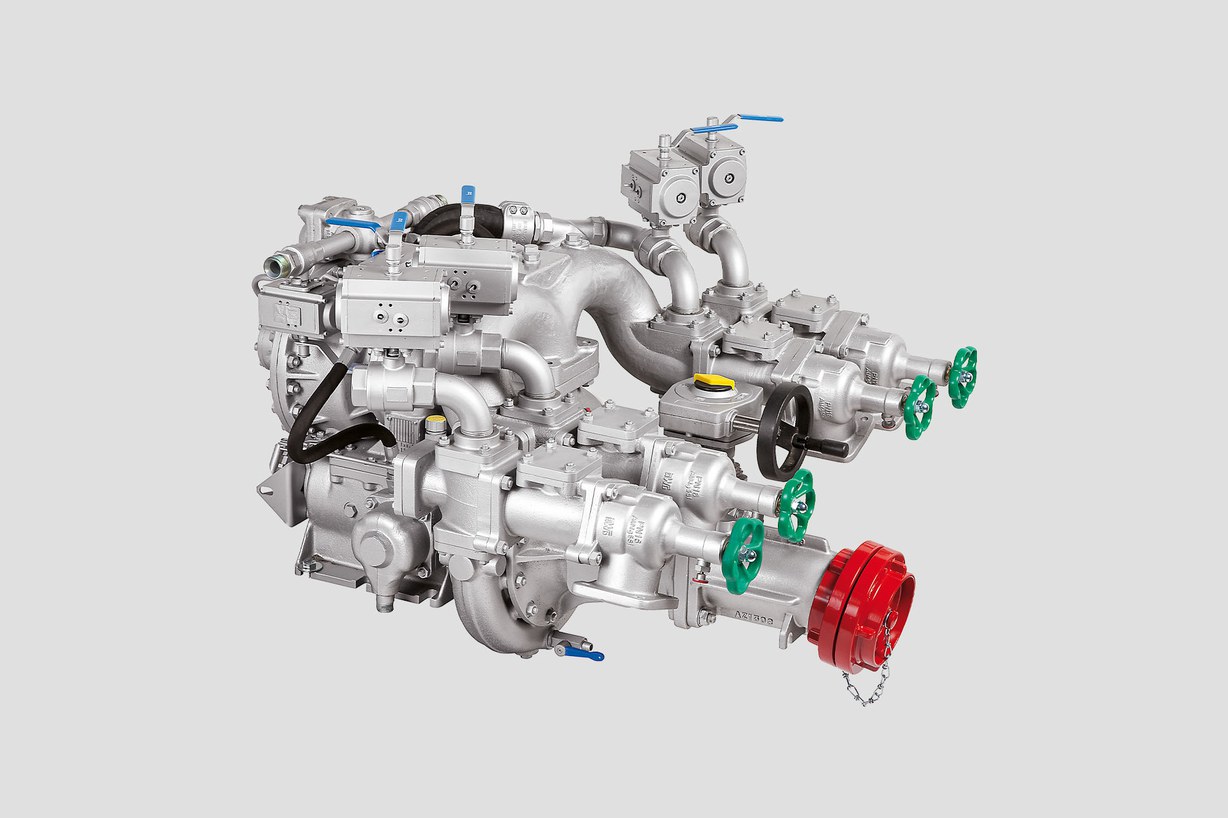

FPN 10-2000 / FPN 15-2000 Centrifugal firefighting pump

Products

Extinguishing systems and components

Installation Pumps

Pump Technology

Ziegler’s centrifugal fire pumps are high-performance, low-wear pumps with one- or two-stage design, robust, water resistant, extremely reliable and easy to maintain. The clear structure, easy-to-read control panels and automatic switching, ventilation and pressure control equipment have ensured the ease of use.

Our pumps can be updated at any time within their performance range, which means that is can easily be adapted to special conditions, e.g. foreign standards. Our centrifugal fire pumps are made of seawater-resistant and non-rusting materials and equipped with the unique Ziegler pump ventilation system TROKOMAT.

Our pumps are used as built-in pumps or portable pumps. Not only due to their exemplary ease of use, Ziegler pumps have been proven to be the best in the world.

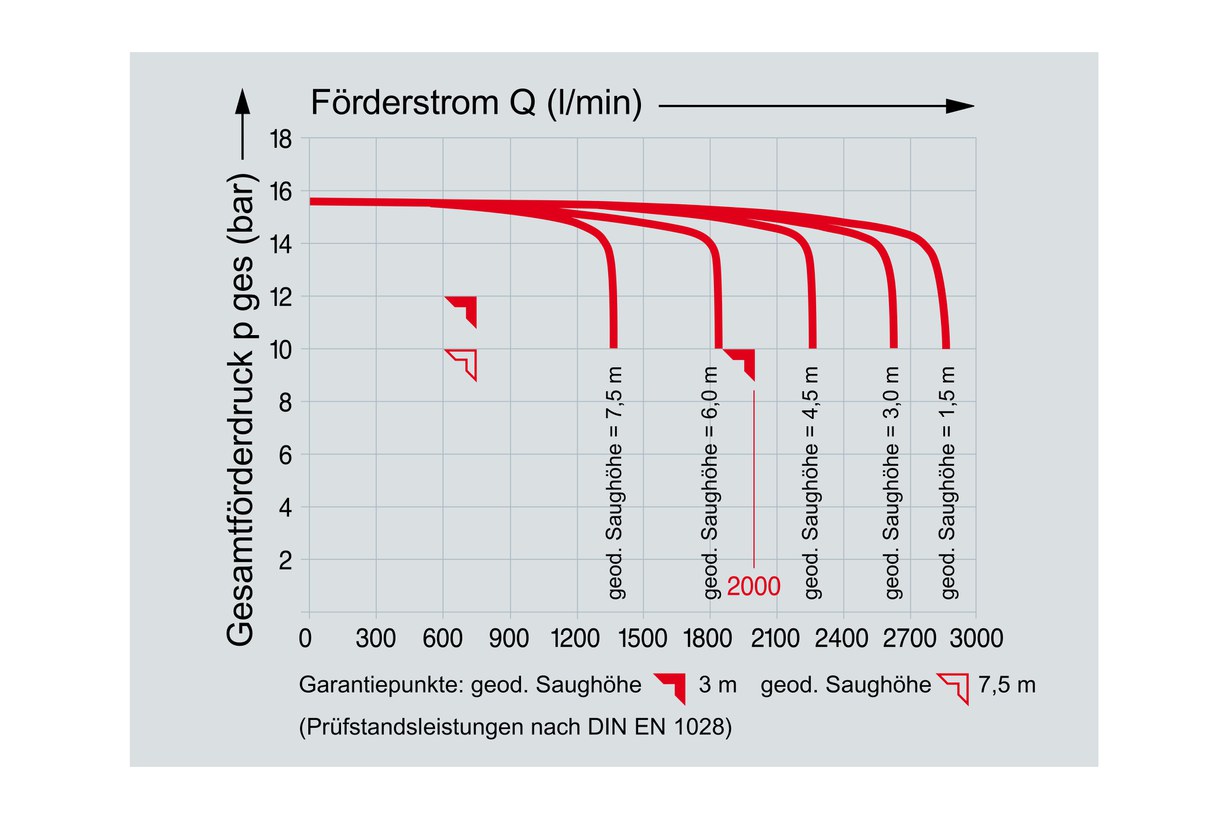

Performance

Pump type	Power Input max.	Pump output max. l/min
FPN 10-2000- 1HL	105 (143) kW (HP)	2.500
FPN 10-2000- 1HR	105 (1439 kW (HP)	2.500
FPN 10-2000- 2HL	86 (117) kW (HP)	2.500
FPN 10-2000- 2HR	86 (117) kW (HP)	2.500
FPN 15-2000- 1HL	125 (170) kW (HP)	2.500
FPN 15-2000- 1HR	125 (170) kW (HP)	2.500
FPN 15-2000- 2HL	108 (147) kW (HP)	2.500
FPN 15-2000- 2HR	108 (147) kW (HP)	2.500

Weight

Pump type	Weight ca. kg
FPN 10-2000-1HL	90
FPN 10-2000-1HR	90
FPN 10-2000-2HL	115
FPN 10-2000-2HR	115
FPN 15-2000-1HL	90
FPN 15-2000-1HR	90
FPN 15-2000-2HL	115
FPN 15-2000-2HR	115

Dimensions (LxWxH)

Pump type	Measures ca. LxWxH mm
FPN 10-2000-1HL	1.010x920x850
FPN 10-2000-1HR	1.010x920x850
FPN 10-2000-2HL	1.010x920x850
FPN 10-2000-2HR	1.010x920x850
FPN 15-2000-1HL	1.010x920x850
FPN 15-2000-1HR	1.010x920x850
FPN 15-2000-2HL	1.010x920x850
FPN 15-2000-2HR	1.010x920x850

Options

third and fourth delivery outlet, connection for a second rapid
intervention line, line for turret
installation of a pump proportioner
automatic p.t.o. engagement (ANS)
automatic pressure governor (TOURMAT D)
automatic water supply system (AWZ),
TROKOMAT PLUS shut-off
pumping out unit

ZIEGLER Centrifugal fire pumps in modular system

The proven ZIEGLER pumps are not only available in various performance sizes but depending on quantity and position they also can be provided with different delivery outlets, with automatic switching and pressure control as well as with various foam proportioning systems.

The demand for an extinguishing technology keeping the secondary water damages as small as possible will be met increasingly by sophisticated, electronic systems. The three-stage ZIEGLER high-pressure pump proven since almost 50 years and continuously developed will be switched on via an electro-magnetic coupling of the running normal pressure pump if required. Its impellers are fixed on an own pump shaft, thus they will not run along with at sole operation of the normal pressure pump.

This allows on the one hand an extremely compact design and on the other hand the wear will be reduced considerably.

All ZIEGLER pumps are prepared suitably for relatively easy retrofit with a highpressure pump. If the connection line from the normal pressure pump to the highpressure pump will be opened, the electro-magnetic coupling will be actuated simultaneously. Then, the delivery outlet to the high-pressure reel or the corresponding high-pressure outlet will be opened.

A thermal discharge line to the tank or at equipment with a pump proportioner to the outside prevents an overheating at interruption of the water delivery. Optionally, an additional warning buzzer is available.

The following operation modes are possible:

pure normal pressure pump operation (high-pressure pump stopped)
pure high-pressure operation (normal pressure pump in circulation only runs for supply of the high pressure pump)
combined pump operation (normal pressure and high pressure pump are running at the same time)
